W25Q16DW
7.2.27
Erase / Program Resume (7Ah)
The Erase/Program Resume instruction “7Ah” must be written to resume the Sector or Block Erase
operation or the Page Program operation after an Erase/Program Suspend. The Resume instruction “7Ah”
will be accepted by the device only if the SUS bit in the Status Register equals to 1 and the BUSY bit
equals to 0. After issued the SUS bit will be cleared from 1 to 0 immediately, the BUSY bit will be set from
0 to 1 within 200ns and the Sector or Block will complete the erase operation or the page will complete the
program operation. If the SUS bit equals to 0 or the BUSY bit equals to 1, the Resume instruction “7Ah”
will be ignored by the device. The Erase/Program Resume instruction sequence is shown in Figure 26a &
26b.
Resume instruction is ignored if the previous Erase/Program Suspend operation was interrupted by
unexpected power off. It is also required that a subsequent Erase/Program Suspend instruction not to be
issued within a minimum of time of “t SUS ” following a previous Resume instruction.
/CS
Mode 3
0
1
2
3
4
5
6
7
Mode 3
CLK
Mode 0
Mode 0
Instruction (7Ah)
DI
(IO 0 )
Resume previously
suspended Program or
Erase

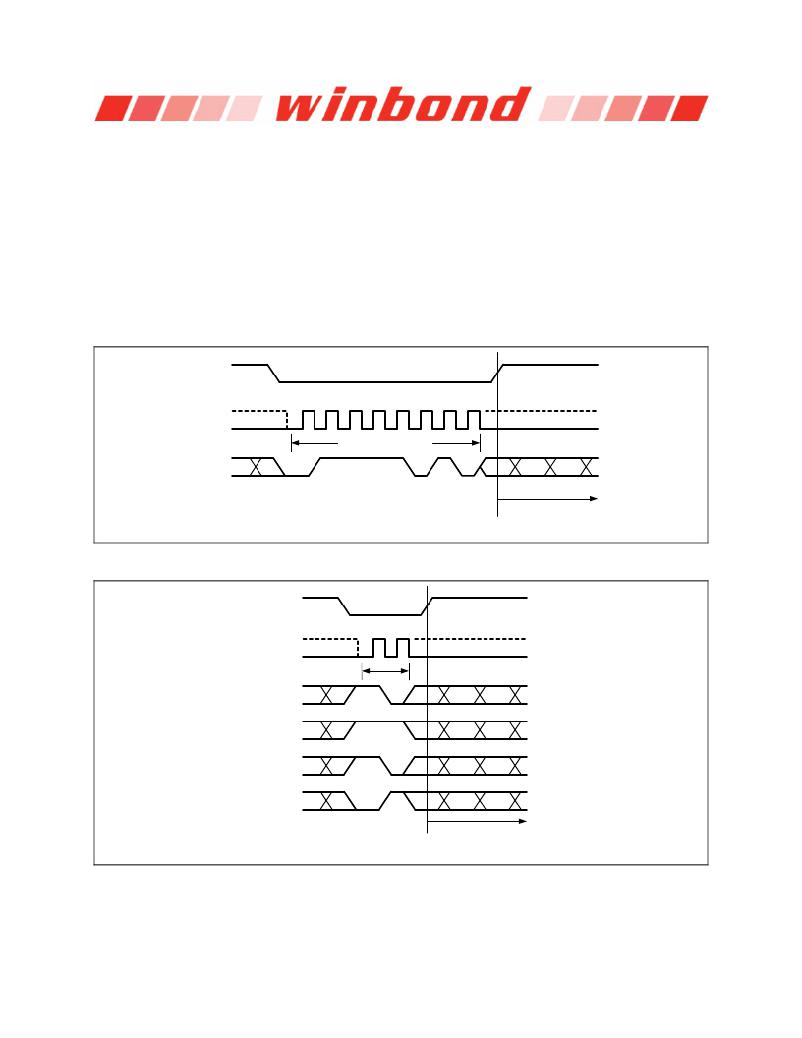

Figure 26a. Erase/Program Resume Instruction (SPI Mode)
/CS
CLK
Mode 3
Mode 0
0
1
Mode 3
Mode 0
In structio n
7Ah
IO 0
IO 1
IO 2
IO 3
Resume previously
suspended Program or
Erase
Figure 26b. Erase/Program Resume Instruction (QPI Mode)
